I left off where the two micro LEDs for the cabin lighting were not working.
Cabin Lighting
As it turns out, I had two issues:
- One of the micro LED was dead
- The other was not connected correctly - the longer wire is the anode or + or red cable, whereas the shorter wire is the cathode or - or black wire
Once I figured that out, it worked very nicely on each side:
I had to tweak the decoder CVs a lit bit:
- Cabin light is now only controlled by F21 and the driving direction
- For each of AUX3 and AUX4, I changed on delay, off delay, fade in/out, and timeout
I then glued the micro LEDs in the cabins - I used Zap-A-Gap CA glue:
Cabin Painting
Since there's cabin light, we need to make the inside look more realistic. First, some pictures of the real cabin:
 |
| http://uxtobirza.free.fr/trains/voir_loco.php?Classe=BB%2036000 |
 |
| https://www.flickr.com/photos/teetee1986/28987578498 |
 |
| https://commons.wikimedia.org/wiki/File:BB36000_-_IMG_0899.jpg |
 |
| https://commons.wikimedia.org/wiki/File:BB36000_-_IMG_0936.jpg |
 |
| https://commons.wikimedia.org/wiki/File:BB36000_-_IMG_0938.jpg |
 |
| https://commons.wikimedia.org/wiki/File:BB36000_-_IMG_0963.jpg |

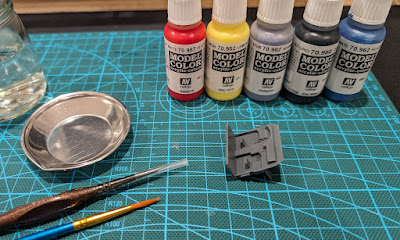

Let's see what we can do ...
